Wooden Carport 18m2 with Habrita Roof

Wooden carport 18m2 with Habrita roof.
Solid wood carport 3 x 3.60 cm section, with roof covered with bituminous shingles is ideal for a covered garage for car, bike and motorcycle.

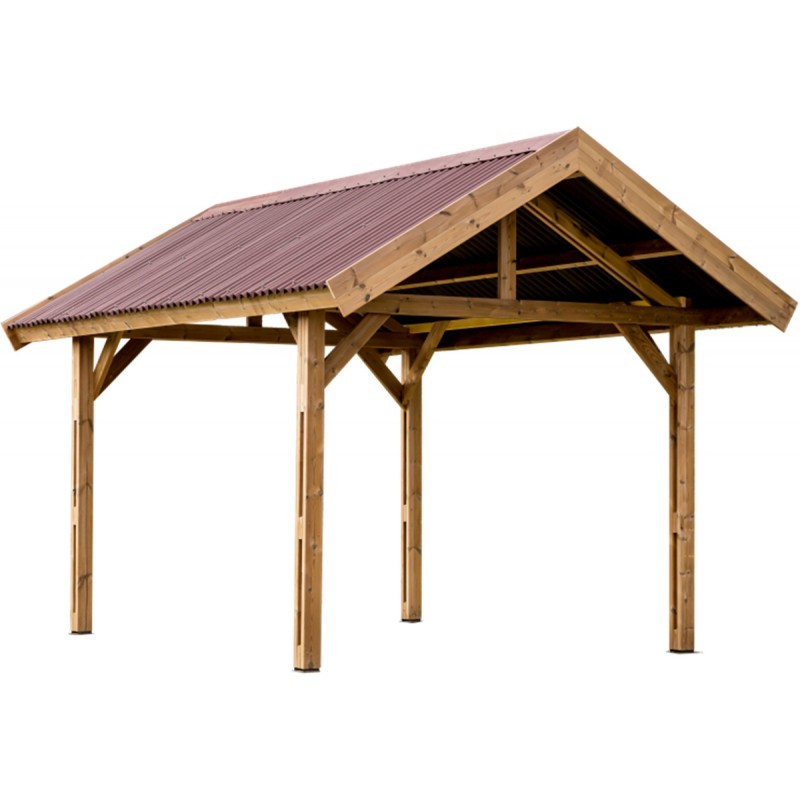

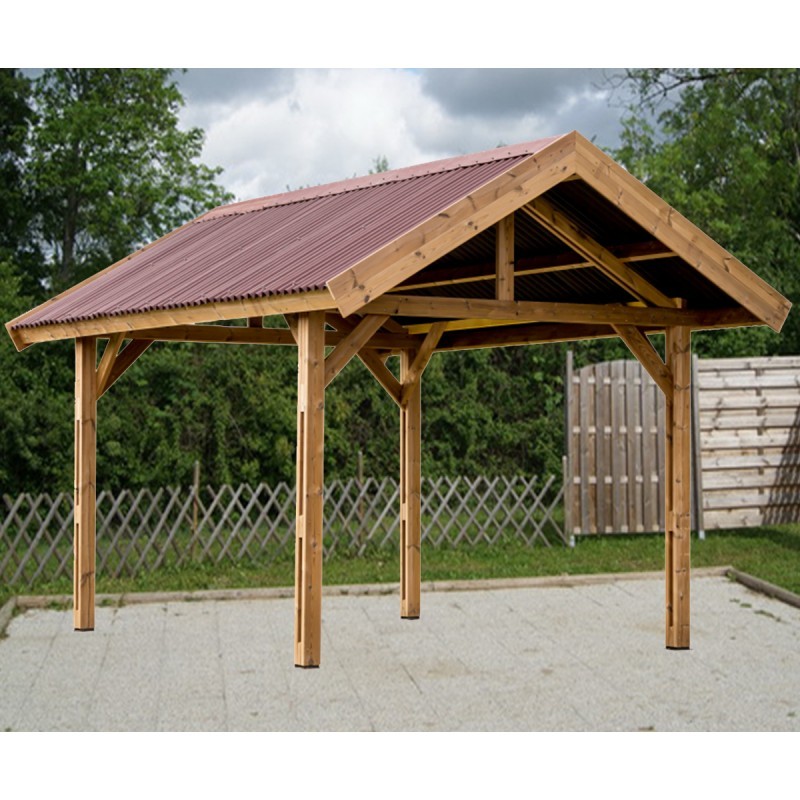

The Habrita wooden carport is a solid product, its floor dimensions are 3x3.60m with a roof cover of 3.55x5.04m with a floor area of 17.89m².

The roof with a double slope of 30 ° has a ridge height of 3.38m, it is covered with corrugated plates of the brand Onduline with nails with molded head of the same color. A robust frame of rafters of 40x140 and 40x120mm ensures great stability to the construction.

The 4 posts of the 120x120mm section structure consist of 2 molded pieces of 120x40mm assembled with 70mm drawers, which offer a passage width of 2.76m for a height of 2.22m. This carport, made in France by Habrita, is to be installed on concrete slab or studs. Metal plates provided allow the fixing of the posts to the ground.

The wood used has been thermo heated, which makes it rot-proof and not very susceptible to insect attacks. It is an ecological process combining water vapor and very high temperature, which leads to a change in the color of the wood and improves its performance: a single treatment after assembly is enough. It allows the use of local spruce species, from responsibly managed forests and PEFC certified logging operations. 10-year warranty.

Some technical data

• Carport habrita in thermo heated spruce wood

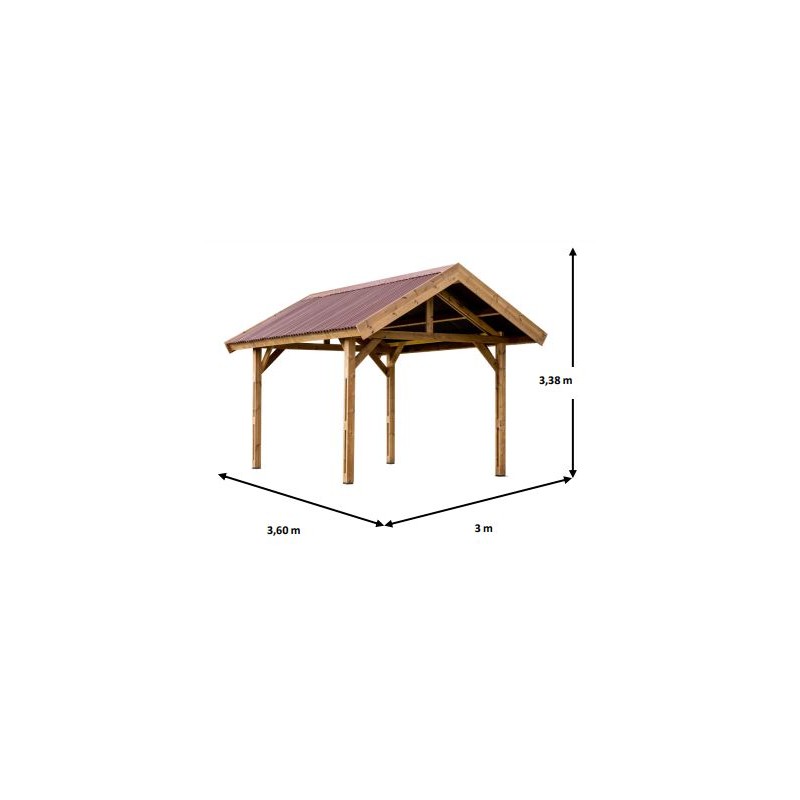

• Dimensions: 360x300cm
• Passage/total height: 222/338cm
• Passage width: 276cm
• Useful area: 17.89m²
• 4 spruce posts, section 12x12cm (2 moulded pieces of 12x4cm assembled with 7cm drawers)
• Poles delivered with metal plate to be fixed to the hard floor
• Chevrons, section 4x14cm and 4x12cm
• Cover: double sloped roof in corrugated plates of brick red color (355x504cm) with molded head nails of the same color
• Screws included

Learn more:
. Carport autoclave economical double slope roof- Very good value for money for garage covered car- Section pole 12x12 cm- Product made in EUROPE- PRODUCT FSC
. Warranty: 10 years against a deformation of the structure (and not on the finish) 2 years on the cover

Technical details
• Material: Northern Spruce
• Post section: 12x12 cm
• External dimensions overall: 360x300cm
• Exterior surface overall: 17.89m²
• Passage: 1 car
• Passage height: 2.22 m
• Total height: 3.38 m
. Width Passage 276cm
• Colors: natural wood and asphalt shingle roof
• Packaging dimensions: 400 x 120 x 50 cm
• To be installed on a concrete slab, stud or wood floor
• Maintenance: Application of a maintenance oil
• Warranty: 10 years

Assembly.
You need to mount your shelter on a flat, stable and durable foundation, and never directly on dirt or lawn.
Shelters >4.9m2 must be mounted on a concrete slab
Your concrete slab should be 10 cm thick and 3 to 5 cm on the periphery of the shelter.
So to get your foundation size: add 3 to 5 cm to the external dimensions walls shelter.
Once the shelter is built, it must be anchored to the foundation.
Number of people needed: 4 people
Type of foundation = concrete slab.
Foundation size = 360x300cm.
Brand: Habrita
Weight: 280kg (27 x 304 x 42 cm)
Certifications: PEFC

To be installed on a concrete slab obligatorily and wood screws provided.
The concrete slab should be 10 cm thick and 3-5 cm on the periphery of the shelter.
Do not mount your garden shed directly on lawn or soil. Maintenance: apply a saturator or wood oil to preserve the interior and exterior color immediately after assembly.
